Chapter 21 UI Assistant Layout Toolbar

VA Assist Pro User’s Guide : Chapter 21 UI Assistant Layout Toolbar

Chapter 21 UI Assistant Layout Toolbar

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\Graphics\p_layout.bmp$

The Layout page includes attachment styles that can be applied to one or more widgets with a single mouse click. Lock a group of widgets to the lower right corner of the window with one mouse click!

The default attachment style list represents most of the common attachment combinations that you are likely to need. One mouse click on one of these options replaces at least ten or more mouse clicks in the Composition Editor. All of these options can be applied to multiple widgets at the same time. The Composition Editor forces you to access each widget one by one. Thus one mouse click in the UI Assistant replaces N times 10+ mouse clicks in the Composition Editor.

Offset / Position

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\C_OFFSET.BMP$ Specify the offset or position for each edge of the selected parts. If the associated attachment is of the type XmATTACHPOSITION, the input will represent a percentage between 0 and 100. For any other attachment type, it represents a fixed pixel offset. “L” indicates the left edge; “R” indicates the right edge, “T” indicates the top edge; and “B” indicates the bottom edge.

The hover help for these fields indicates the current settings for the selected widgets. The text will be different depending on whether one or more widgets is selected.

e.g. $C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\Graphics\h_offset2.bmp$ $C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\Graphics\h_offset1.bmp$

Right-click on any of the offset fields to set the attachment type or to set widget attachments.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\Graphics\m_offset.bmp$

Top-Left Corner

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TLC.BMP$ Fixed Distance from Top-Left Corner.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TL.jpg$

Top-Right Corner

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TRC.BMP$ Fixed Distance from Top-Right Corner.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TR.jpg$

Bottom-Left Corner

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BLC.BMP$ Fixed Distance from Bottom-Left Corner.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BR.jpg$

Bottom-Right Corner

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BRC.BMP$ Fixed Distance from Bottom-Right Corner.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BR.jpg$

Top, Left and Right Sides

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TLRS.BMP$ Fixed Distance from Top, Left and Right Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TLR.jpg$

Bottom, Left and Right Sides

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BLRS.BMP$ Fixed Distance from Bottom, Left and Right Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BLR.jpg$

Top, Bottom and Left Sides

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TBLS.BMP$ Fixed Distance from Top, Bottom and Left Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TBL.jpg$

Top, Bottom and Right Sides

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TBRS.BMP$ Fixed Distance from Top, Bottom and Right Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TBR.jpg$

All Sides

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_AS.BMP$ Fixed Distance from All Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-fixed.jpg$

Relative Position and Size

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_RPS.BMP$ Relative Position and Size.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-relative.jpg$

Relative Width, Fixed Distance from Top

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_RWTS.BMP$ Relative Width, Fixed Distance from Top.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-T-W.jpg$

Relative Width, Fixed Distance from Bottom

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_RWBS.BMP$ Relative Width, Fixed Distance from Bottom.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-B-W.jpg$

Top, Left and Right Sides, Relative to Bottom

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TLRRB.BMP$ Fixed Distance from Top, Left and Right Sides, Relative to Bottom Side.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TLR-B.jpg$

Bottom, Left and Right Sides, Relative to Top

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BLRRT.BMP$ Fixed Distance from Bottom, Left and Right Sides, Relative to Top Side.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BLR-T.jpg$

Top, Bottom and Left Sizes, Relative to Right

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TBLRR.BMP$ Fixed Distance from Top, Bottom and Left Sizes, Relative to Right Side.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TBL-R.jpg$

Top, Bottom and Right Sides, Relative to Left

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TBRRL.BMP$ Fixed Distance from Top, Bottom and Right Sides, Relative to Left Side.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TBR-L.jpg$

Top-Left Corner, Relative to Bottom and Right

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TLCRBR.BMP$ Fixed Distance from Top-Left Corner, Relative to Bottom and Right Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TLBR.jpg$

Top-Right Corner, Relative to Bottom and Left

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_TRCRBL.BMP$ Fixed Distance from Top-Right Corner, Relative to Bottom and Left Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-TRBL.jpg$

Bottom-Left Corner, Relative to Top and Right

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BLCRTR.BMP$ Fixed Distance from Bottom-Left Corner, Relative to Top and Right Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BLTR.jpg$

Bottom-Right Corner, Relative to Top and Left

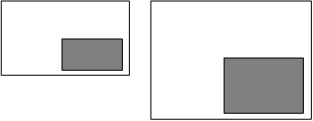

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\ao\GRAPHICS\B_BRCRTL.BMP$ Fixed Distance from Bottom-Right Corner, Relative to Top and Left Sides.

$C:\Users\documentation\Documents\vastePublisher\stable\VAS Documentation Word\images\vaast\Graphics\l-BRTL.jpg$
